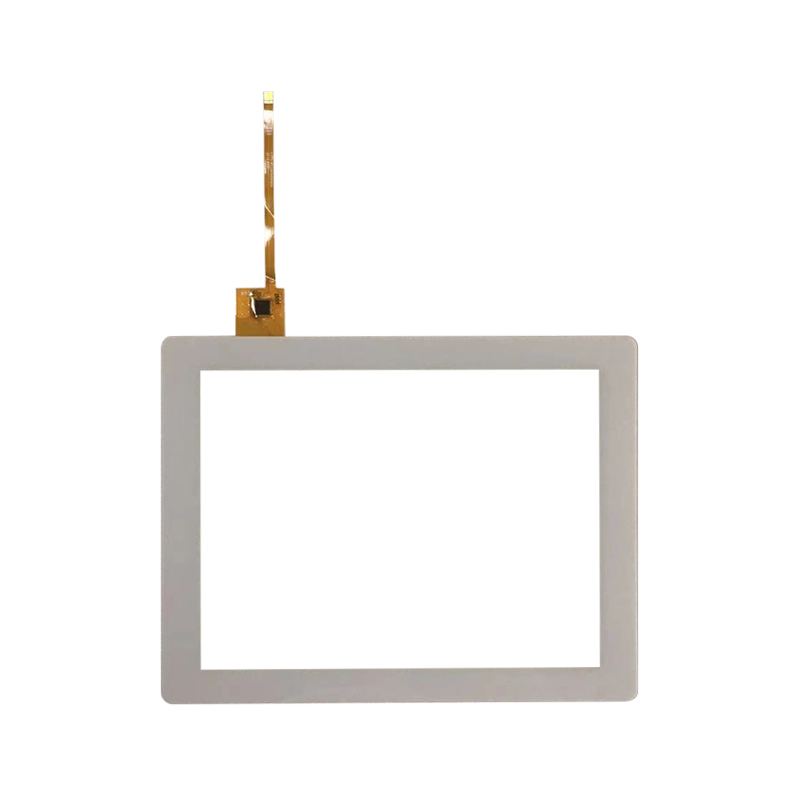

- 8.0寸电容触控屏
8.0寸电容显示屏
工业级应用
询盘咨询
| Size | 8inch |
| Model Number | WT08001A |
| Window OD(mm) | 194.8*150.4 |
| Sensor OD(mm) | 173.7*134.35 |
| View Area(mm) | 164.05*123.54 |
| Active Area(mm) | 163.05*122.54 |
| Sensor Thickness(mm) | 0.55mm |
| Total thickness | 1.65mm |
| Contoller | Goodix GT911 |
| Touch points | 10 point |
| Transmittance | ＞85% |
| Interface | IIC(USB, RS232) |
| Structure | Cover glass + sensor glass |
| Touch solution | COF |
| Surface hardness | 6H |
| Operation Temperature | -20℃------70℃ |
| Storage Temperature | -30℃---------80℃ |
| Warranty | 12Months |
| Operate system | Win7,win8,win10,Android, Linux, Mac, etc. |
| Customized highly accepted | Wateproof/Gloves/AF/AG/AR special treatment |
