- 5.7寸电容触摸屏

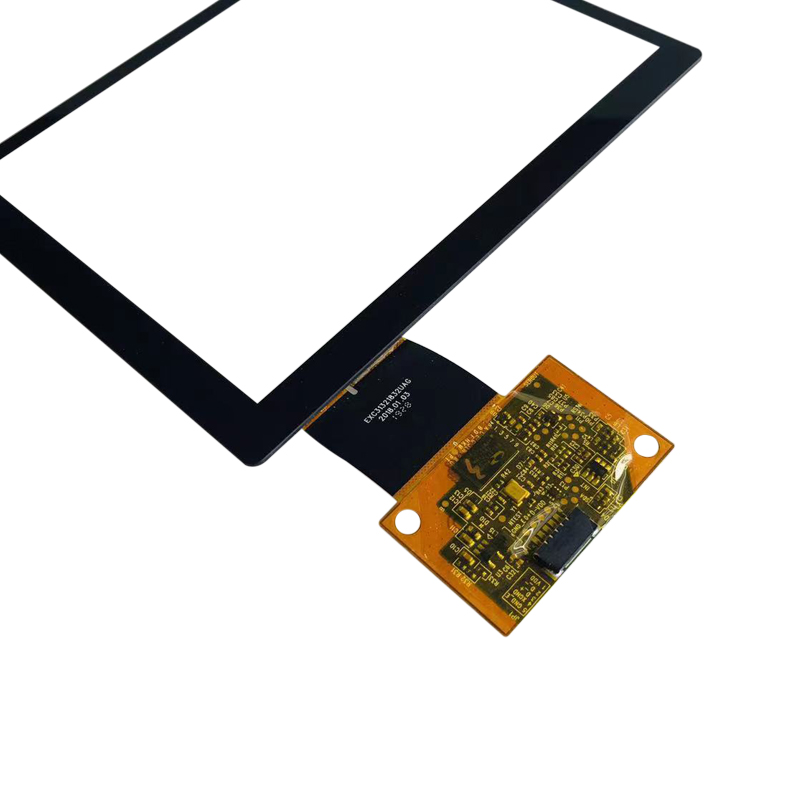

5.7寸电容显示屏
工业级应用
询盘咨询
| Size | 5.7inch |
| Model Number | WT05701A |
| Active Area(mm) | 117.4*88.6 |
| View Area(mm) | 116.4*87.6 |
| Sensor OD(mm) | 129.4*99.9 |
| Lens OD(mm) | 130*101.2 |
| Sensor Thickness(mm) | 0.55mm |
| Total thickness | 1.85mm |
| Contoller | EETI 3132 |
| Touch points | 5 multi-point (Max 10 point) |
| Transmittance | ＞85% |
| Interface | USB (IIC, RS232) |
| Structure | Cover glass + sensor glass |
| Touch solution | COF |
| Surface hardness | 6H |
| Operation Temperature | -20℃------70℃ |
| Storage Temperature | -30℃---------80℃ |
| Warranty | 12Months |
| Operate system | Win7,win8,win10,Android, Linux, Mac, etc. |
| Customized highly accepted | Wateproof/Gloves/AF/AG/AR special treatment |
