- 5.0寸电容触摸屏

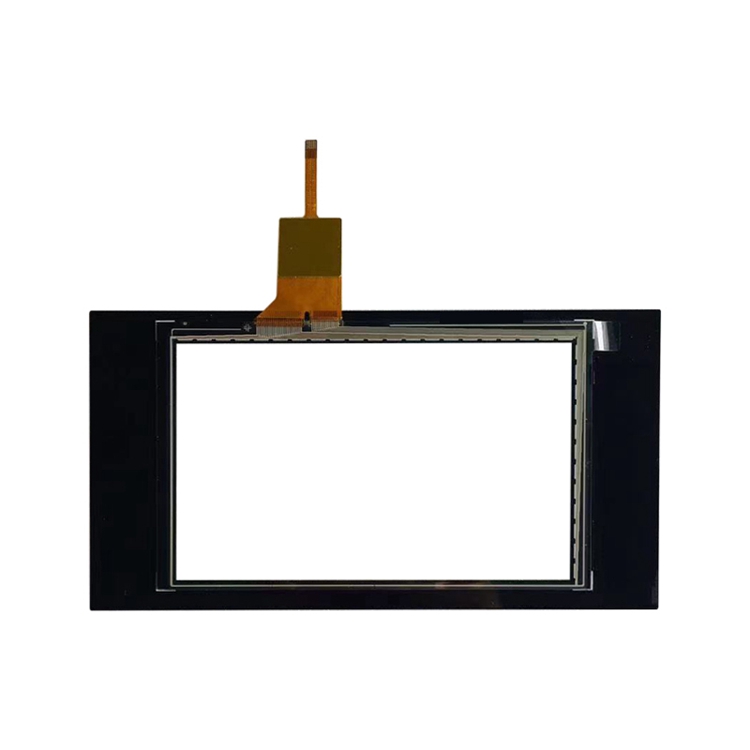

5.0寸电容显示屏
工业级应用
询盘咨询
Size | 5 inch |
Model Number | WT05001A |
Active Area(mm) | 109.8*66.6 |
View Area(mm) | 108.8*65.6 |
Sensor OD(mm) | 120.1*74.5 |
Lens OD(mm) | 157.5*83.5 |
Sensor Thickness(mm) | 0.55mm |
Total thickness | 1.8mm |
Contoller | ST1633i/GT/EETI |
Touch points | 5 multi-point (Max 10 point) |
Transmittance | >85% |
Interface | IIC (USB, RS232) |
Structure | Cover glass + sensor glass |
Touch solution | COF |
Surface hardness | 6H |
Operation Temperature | -20℃------70℃ |
Storage Temperature | -30℃---------80℃ |
Warranty | 12Months |
Operate system | Win7,win8,win10,Android, Linux, Mac, etc. |
Customized highly accepted | Wateproof/Gloves/AF/AG/AR special treatment |
