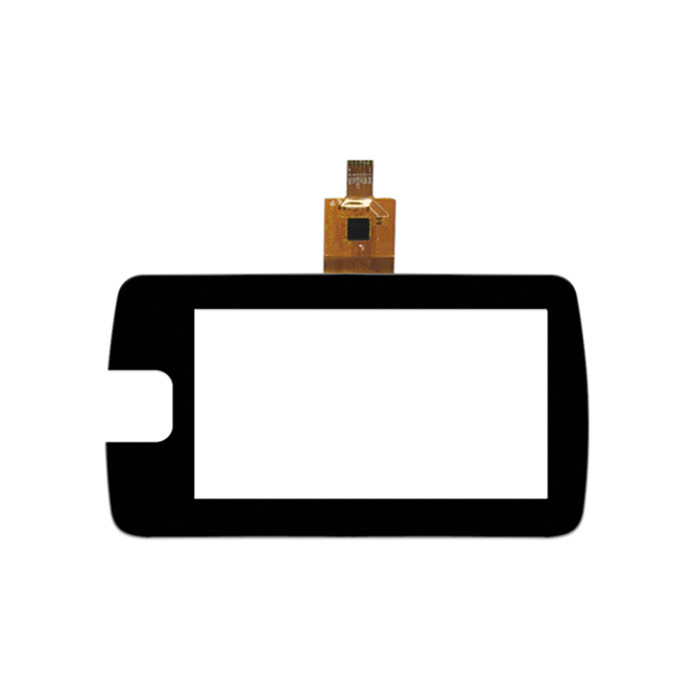

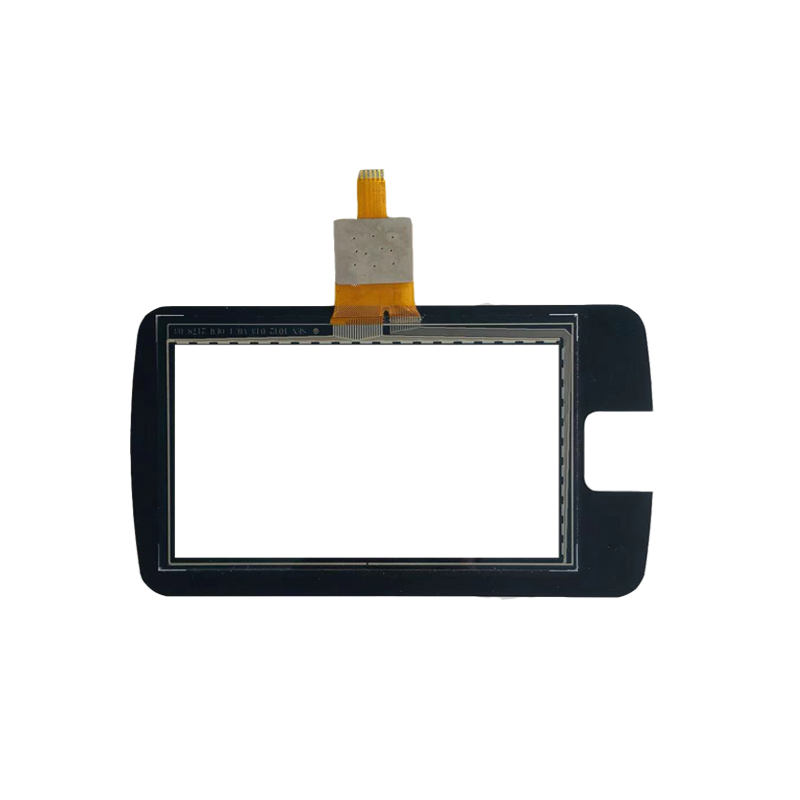

- 4.3寸电容触摸屏
- 4.3寸电容显示屏
工业级应用
询盘咨询
| Size | 4.3 inch |
| Model Number | WT04301A |
| Active Area(mm) | 97.64*56.456 |
| View Area(mm) | 96.44*55.26 |
| Sensor OD(mm) | 103.1*64.55 |
| Lens OD(mm) | 104.5*66.2 |
| Sensor Thickness(mm) | 0.55mm |
| Total thickness | 1.4mm |
| Contoller | FT5306/GT/EETI |
| Touch points | 5 multi-point (Max 10 point) |
| Transmittance | ＞85% |
| Interface | IIC (USB, RS232) |
| Structure | Cover glass + sensor glass |
| Touch solution | COF |
| Surface hardness | 6H |
| Operation Temperature | -20℃------70℃ |
| Storage Temperature | -30℃---------80℃ |
| Warranty | 12Months |
| Operate system | Win7,win8,win10,Android, Linux, Mac, etc. |
| Customized highly accepted | Wateproof/Gloves/AF/AG/AR special treatment |
