- 12.3 inch capacitive touch panel

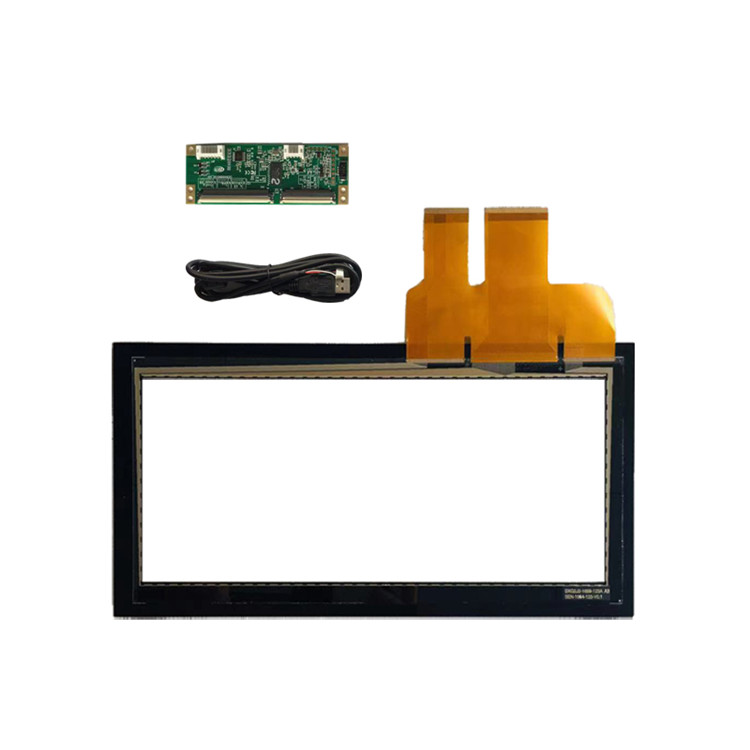

12.3 inch capacitive touch panel
Industrail application
Inquiry
| Size | 12.3 inch |
| Model Number | WT12301A |
| Active Area(mm) | 295.65*112.75 |
| View Area(mm) | 293.65*110.75 |
| Sensor OD(mm) | 304.65*123.25 |
| Lens OD(mm) | 306.65*124.85 |
| Sensor Thickness(mm) | 0.7mm |
| Total thickness | 2.05mm |
| Contoller | ILI2510 |
| Touch points | 10 point |
| Transmittance | ＞85% |
| Interface | USB/IIC/RS232 |
| Structure | Cover glass + sensor glass |
| Touch solution | COB |
| Surface hardness | 6H |
| Operation Temperature | -20℃------70℃ |
| Storage Temperature | -30℃---------80℃ |
| Warranty | 12Months |
| Operate system | Win7,win8,win10,Android, Linux, Mac, etc. |
| Customized highly accepted | Wateproof/Gloves/AF/AG/AR special treatment |
