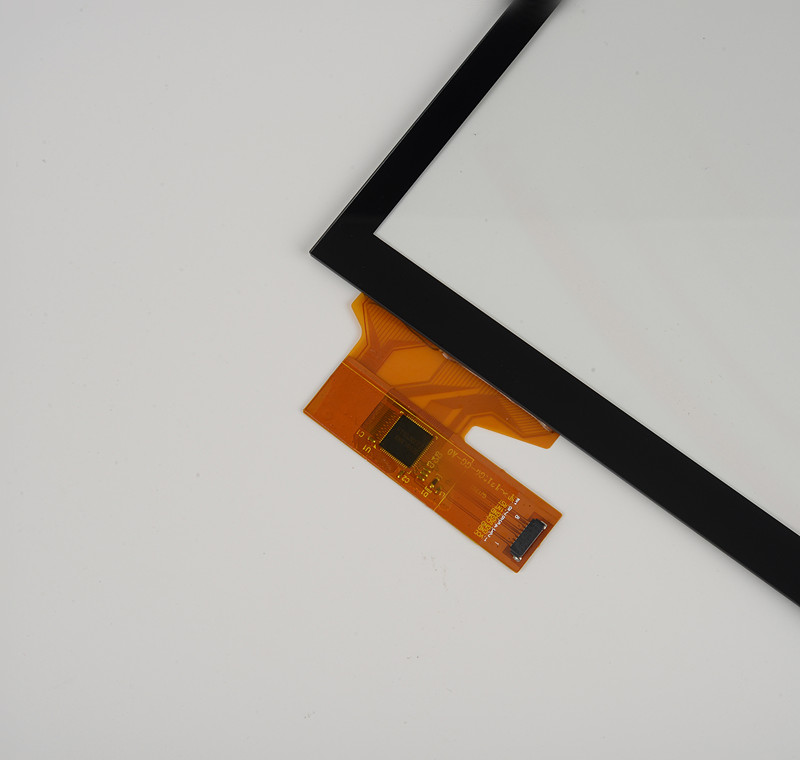

10.1 inch capacitive touch panel

10.1 inch capacitive touch panel

Industrail application

Inquiry
Size 10.1 inch
Model Number WT10101A
Active Area(mm) 218.96*137.2
View Area(mm) 217.96*136.2
Sensor OD(mm) 227.96*148.6
Lens OD(mm) 257.06*170.2
Sensor Thickness(mm) 0.7mm
Total thickness 2.0mm
Contoller ILITEK 2511
Touch points 10 point
Transmittance 85%
Interface USB (IIC, RS232)
Structure Cover glass + sensor glass
Touch solution COB
Surface hardness 6H
Operation Temperature -20℃------70℃
Storage Temperature -30---------80
Warranty 12Months
Operate system Win7,win8,win10,Android, Linux, Mac, etc.
Customized highly accepted Wateproof/Gloves/AF/AG/AR special treatment

*

*

*

*

*
