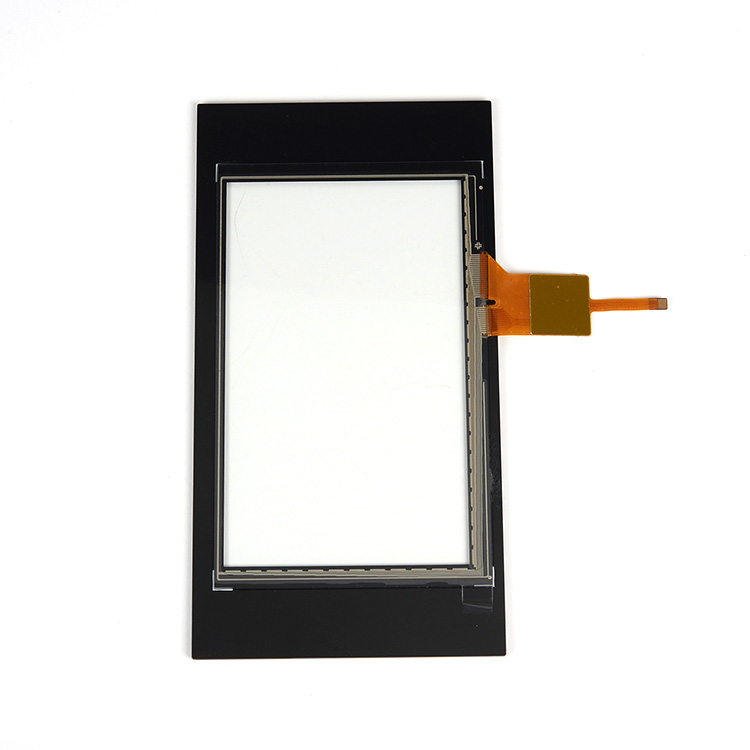

5.0 inch capacitive touch panel
Industrail application
Inquiry
| Size | 5 inch |
| Model Number | WT05001A |
| Active Area(mm) | 109.8*66.6 |
| View Area(mm) | 108.8*65.6 |
| Sensor OD(mm) | 120.1*74.5 |
| Lens OD(mm) | 157.5*83.5 |
| Sensor Thickness(mm) | 0.55mm |
| Total thickness | 1.8mm |
| Contoller | ST1633i/GT/EETI |
| Touch points | 5 multi-point (Max 10 point) |
| Transmittance | ＞85% |
| Interface | IIC (USB, RS232) |
| Structure | Cover glass + sensor glass |
| Touch solution | COF |
| Surface hardness | 6H |
| Operation Temperature | -20℃------70℃ |
| Storage Temperature | -30℃---------80℃ |
| Warranty | 12Months |
| Operate system | Win7,win8,win10,Android, Linux, Mac, etc. |
| Customized highly accepted | Wateproof/Gloves/AF/AG/AR special treatment |
